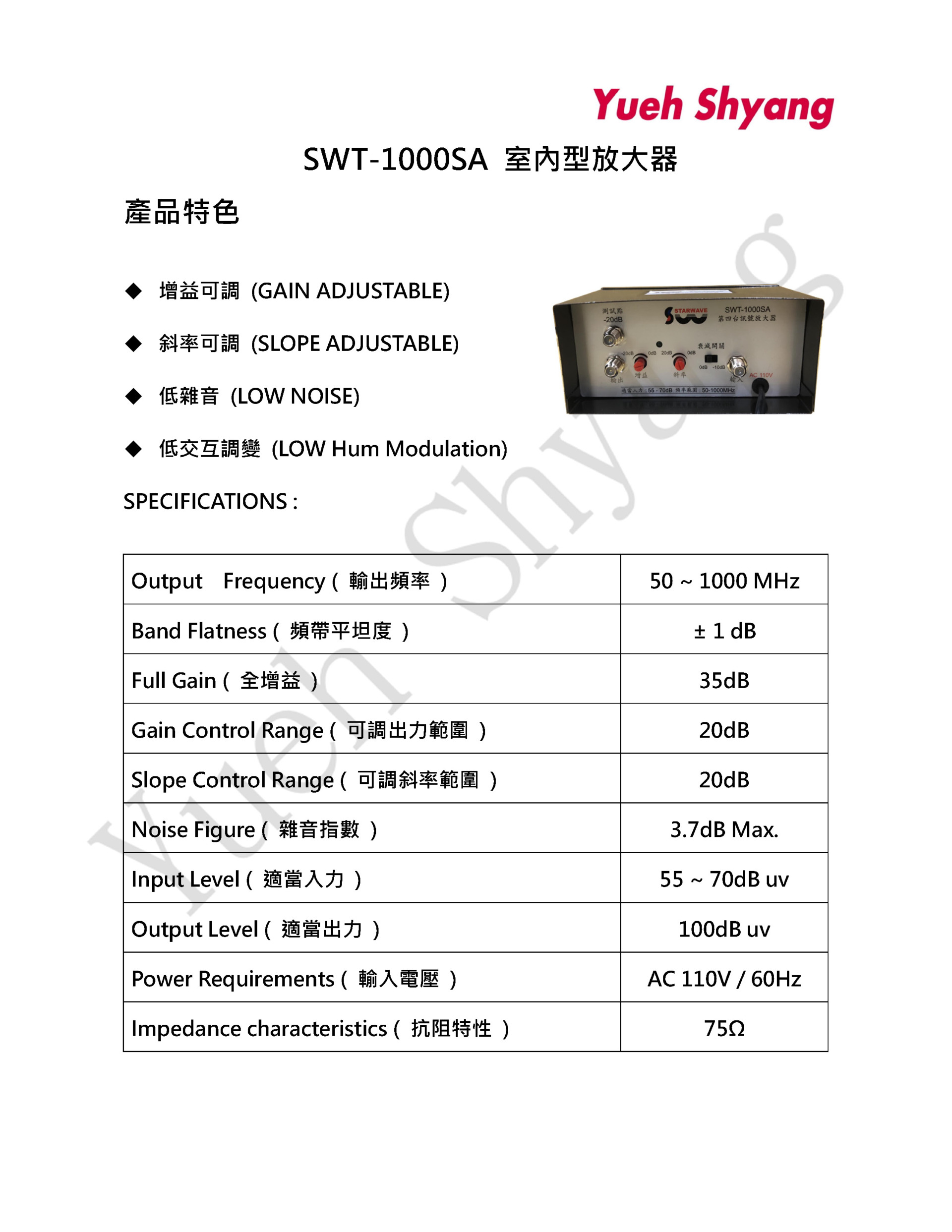

| Output Frequency ( 輸出頻率 ) | 50 ~ 1000 MHz |
| Band Flatness ( 頻帶平坦度 ) | ± 1 dB |
| Full Gain ( 全增益 ) | 35dB |
| Gain Control Range ( 可調出力範圍 ) | 20dB |
| Slope Control Range ( 可調斜率範圍 ) | 20dB |
| Noise Figure ( 雜音指數 ) | 3.7dB Max. |
| Input Level ( 適當入力 ) | 55 ~ 70dB uv |
| Output Level ( 適當出力 ) | 100dB uv |
| Power Requirements ( 輸入電壓 ) | AC 110V / 60Hz |
| Impedance characteristics ( 抗阻特性 ) | 75Ω |
