- 1000BASE-T Gigabit Ethernet
- 10BASE-T, 100BASE-TX Fast Ethernet (IEEE 802.3)
- 100 VG - AnyLAN(IEEE802.12), 155/622 Mbps ATM
All Proposed Category 6A Requirements as Per ANSI/TIA, ISO/IEC, and CENELEC EN Standards.
◎ ANSI/TIA-568-C.2 Cat.6
◎ ISO/IEC 2nd Edition 11801 Class E
◎ IEC 2nd Edition 61156-5 for horizontal cable
◎ Flame Retardancy is Verified According to IEC 60332-1-2
| 產品編號 | 產品描述 | 單位 | ||

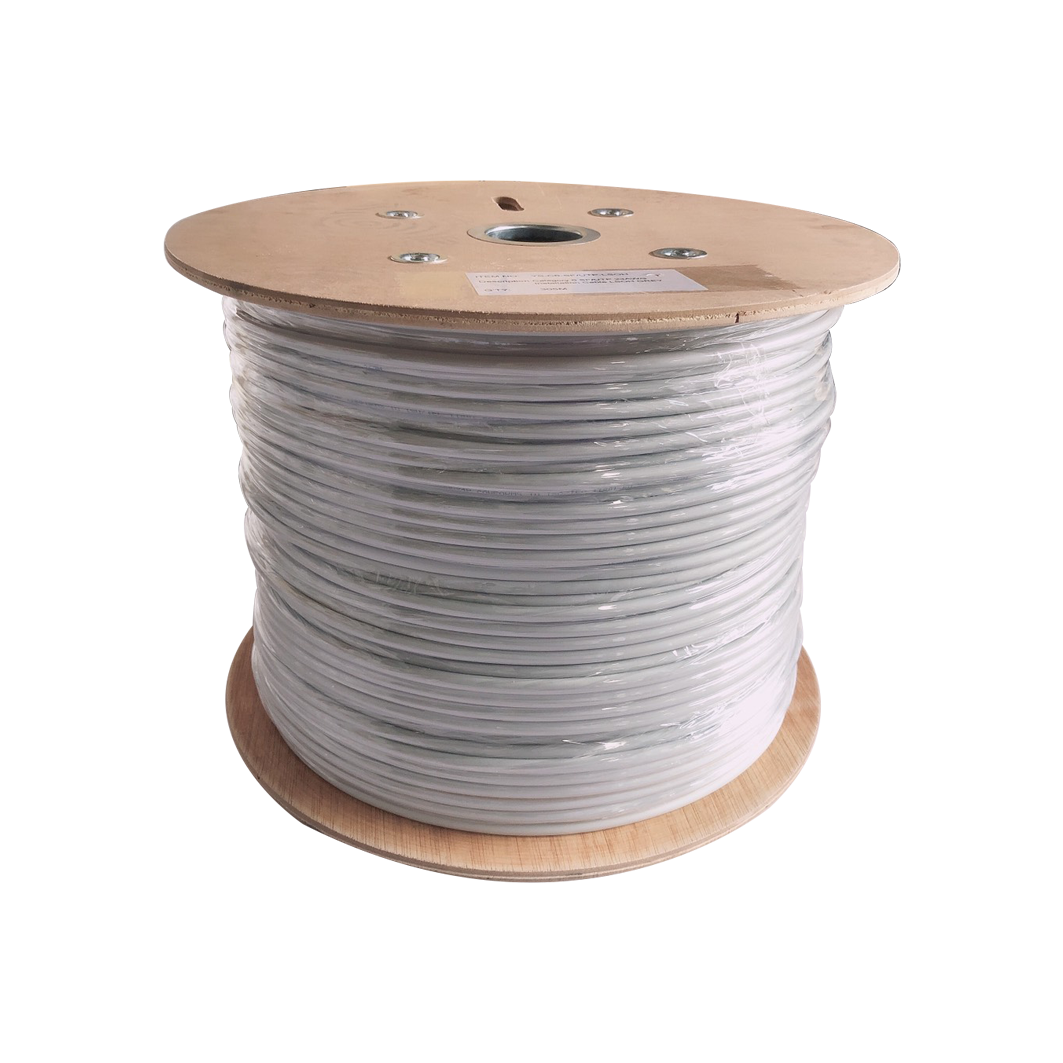

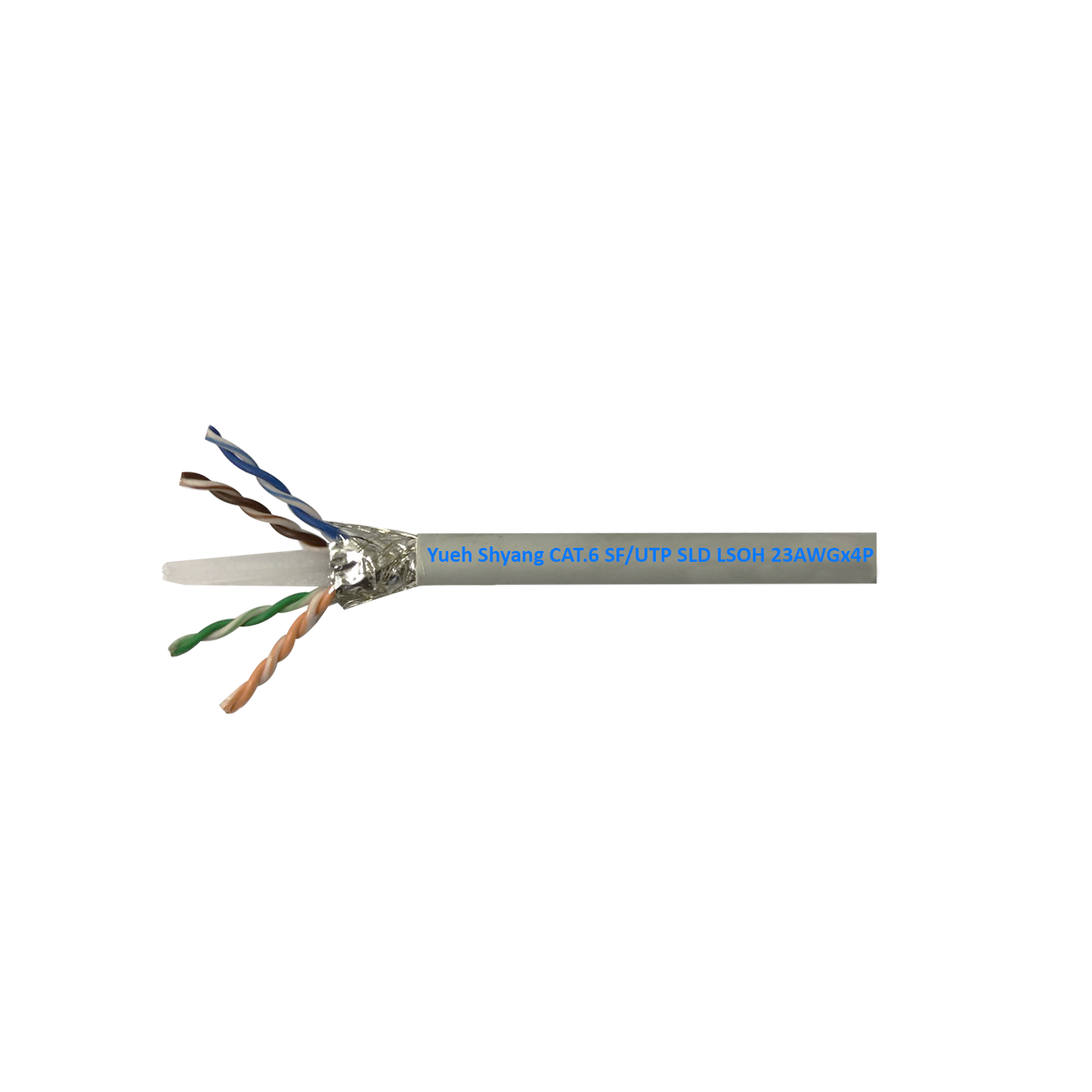

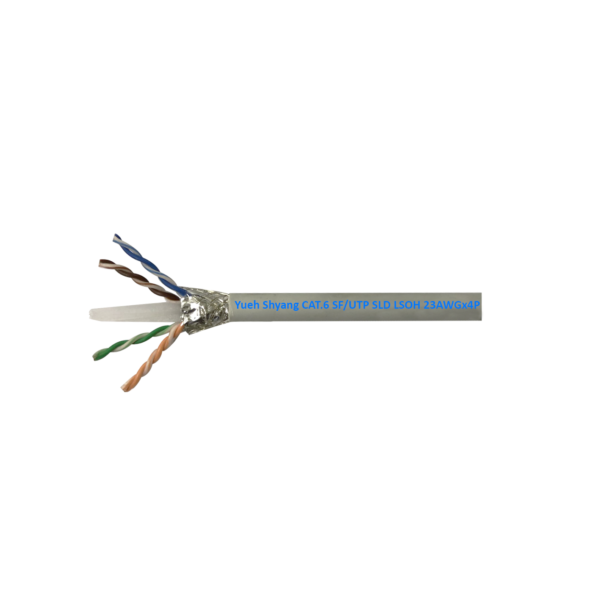

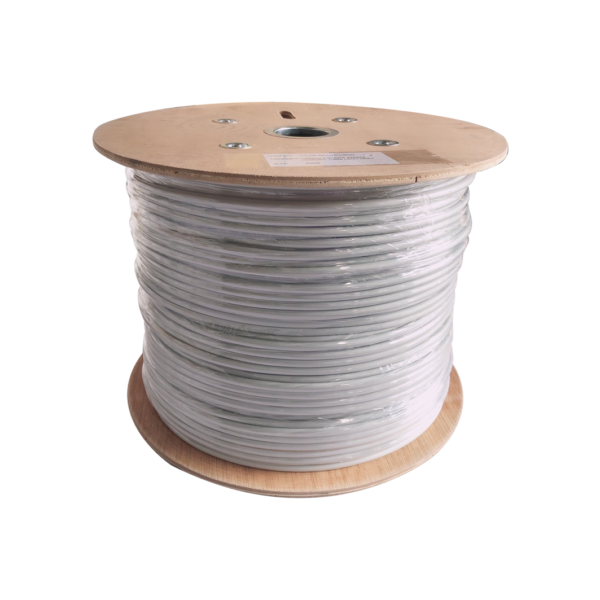

| FAF-6-02-3-YS | CAT6 SF/UTP23AWG低煙無毒網線 | 305M/箱 | ||
| 產品結構 | 電器特性 | |||
| 導體 | 材質/規格 | Bare Copper / 23 AWG | 最大導體電阻
(Conductor Resistance) |
Max. 9.38 Ω/100m at 20℃ |
| 芯線絕緣體 | 材質 | PE | 電阻不平衡
(Resistance Unbalance) |
Max. 2% |
| 厚度 | Nominal: 0.3 mm | 電容不平衡
(Capacitance Unbalance) |
160pf / 100m (最大時) | |
| 外徑尺寸 | Nominal: 1.2 mm | 互耦電容
(Mutual Capacitance) |
5600pF / 100m (最大時) | |
| 芯線申長率 | Min. 100% | 阻抗
(Impedance ) |
1~100 MHz 100Ω±15%
101~250 MHz 100Ω±22% |
|
| 抗拉強度 | Min. 0.816 Kgf/mm² | |||
| 隔離層 | 材質金屬 | 鋁箔與銅編織金屬網 | ||
| 外被 | 材質 | 滯燃性 LSOH | ||
| 厚度 | Nominal: 0.5 mm | |||
| 外徑尺寸 | Nominal: 7.7mm+/-0.2mm | |||
| 外被申長率 | Min. 125% | |||
| 外被抗拉強度 | Min. 0.918 Kgf/mm² | |||
| 外被老化測試 | Min. elongation retention:75% | |||
| Min. tensile strength retention:70% | ||||
