- 1000BASE-T Gigabit Ethernet
- 10BASE-T, 100BASE-TX Fast Ethernet (IEEE 802.3)
- 100 VG - AnyLAN(IEEE802.12), 1.2/2.4 Mbps ATM
- 550MHz Broadband Video
- Voice, T1, ISDN
◎ ANSI/TIA-568.2-D
◎ ISO/IEC 11801-1：
◎ CENELEC EN 50173-1, CENELEC EN 50288-6-2, IEC 61156-6 for patch cable
◎ Flame Retardancy is verified according to IEC 60332-1-2.
◎ RoHS compliance for the requirement of European Union issued Directive 2002/95/EC
CERTIFIED
3P
ETL
| 產品編號 | 產品描述 | 單位 | ||

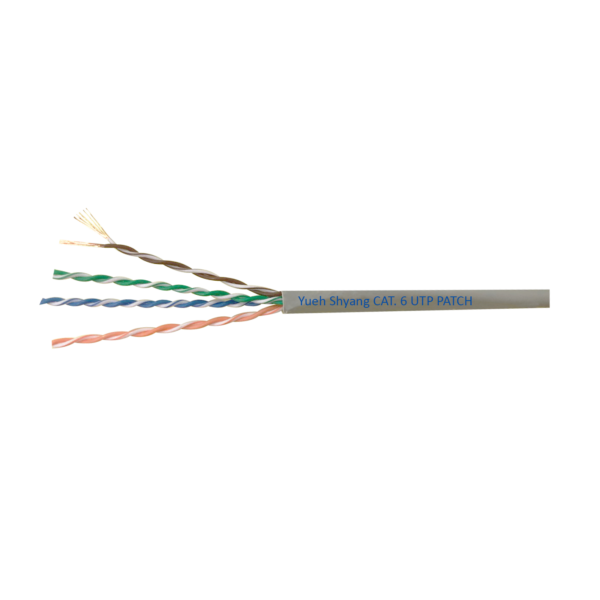

| FAE-6-00-8-YF | CAT6 UTP 多股網路線 | 305M/箱 | ||
| 產品結構 | 電器特性 | |||
| 導體 | 材質/規格 | Bare Copper / 24 AWG | 最大導體電阻
(Conductor Resistance) |
Max. 9.38 Ω/100m at 20℃ |
| 芯線絕緣體 | 材質 | HDPE (高密度聚乙稀) | 電阻不平衡
(Resistance Unbalance) |
Max. 2% |
| 厚度 | Nominal: 0.23 mm | 電容不平衡
(Capacitance Unbalance) |
160pf / 100m (最大時) | |
| 外徑尺寸 | Nominal: 1.05 mm | 互耦電容
(Mutual Capacitance) |
5600pF / 100m (最大時) | |
| 芯線申長率 | Min. 300% | 阻抗
(Impedance ) |
772kHz 125Ω± 20%
1~250MHz 100Ω±15% |
|
| 抗拉強度 | Min. 1.683 Kgf/mm² | |||
| 外被 | 材質 | 滯燃性PVC | ||
| 厚度 | Nominal: 0.5 mm | |||
| 外徑尺寸 | Nominal: 5.8mm | |||
| 外被申長率 | Min. 100% | |||
| 外被抗拉強度 | Min. 1.407 Kgf/mm² | |||
| 外被老化測試 | Min. elongation retention:50% | |||
| Min. tensile strength retention:75% | ||||
