- 10GBASE-T Ethernet
- 1000BASE-T Gigabit Ethernet
- 100 VG - AnyLAN(IEEE802.12), 155/622 Mbps ATM
- 550MHz Broadband Video
- Voice, T1, ISDN
All Category 6A Requirements as Per ANSI/TIA, ISO/IEC, and CENELEC EN Standards: ◎ ANSI/TIA-568.2-D Cat.6A
◎ ISO/IEC 2nd Edition 11801 Class EA
◎ Flame Retardancy is verified according to IEC 60332-1-2
| 產品編號 | 產品描述 | 單位 | ||

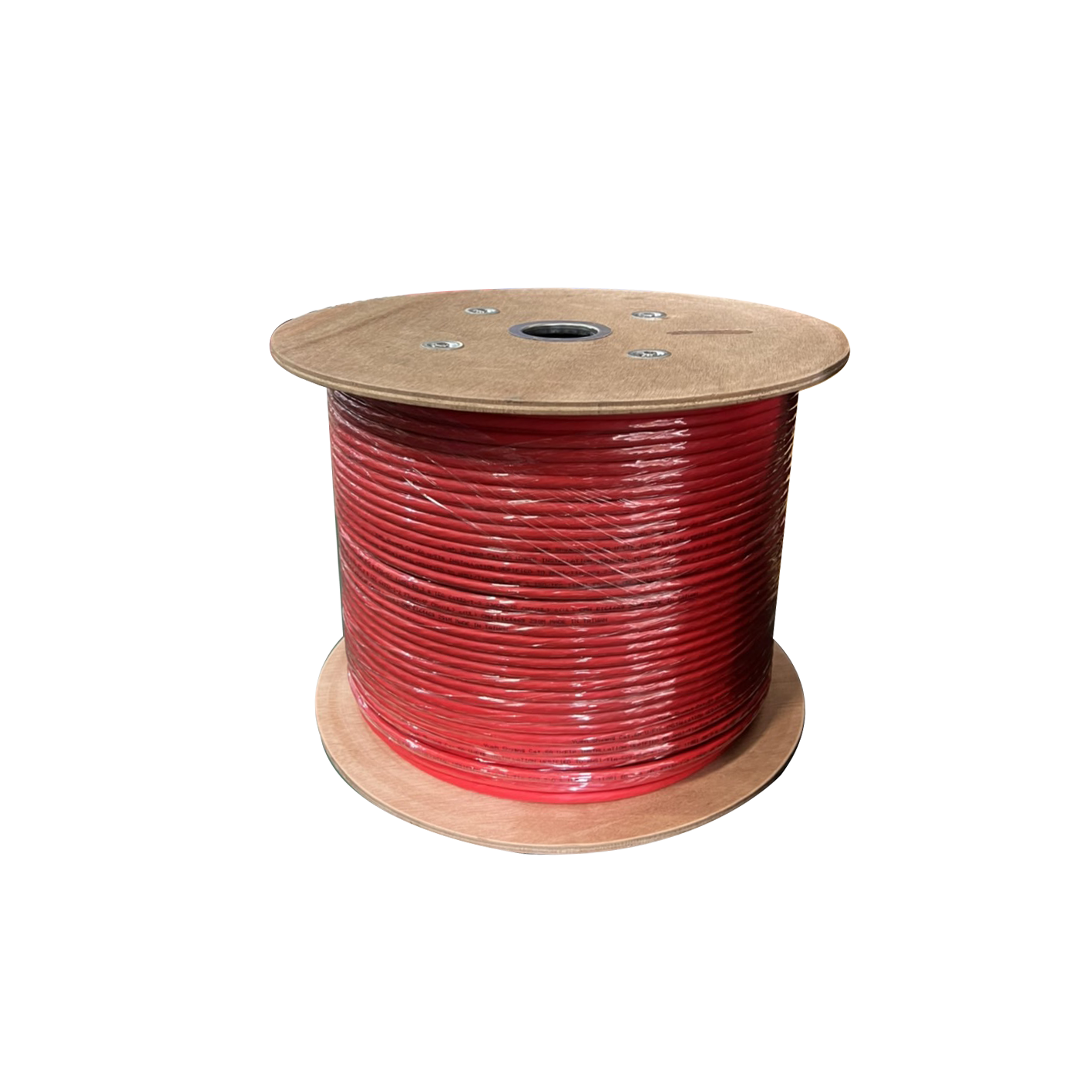

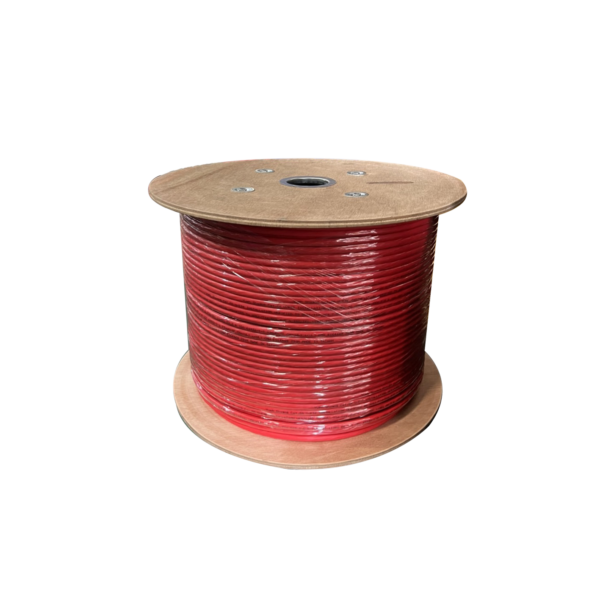

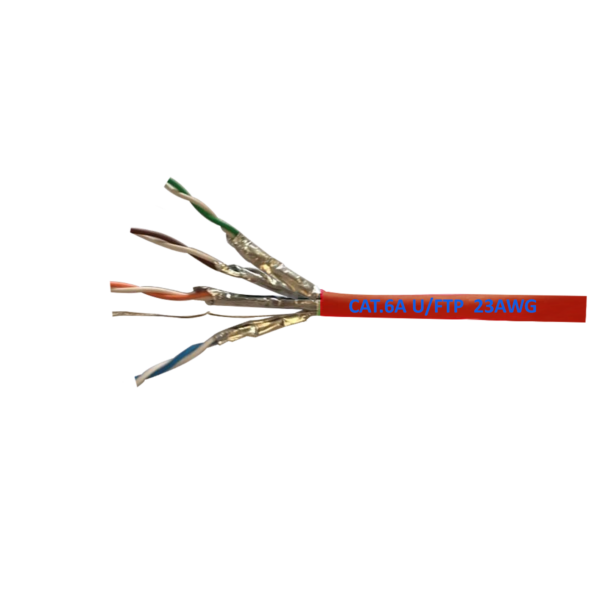

| FAF-6-02-1-YS-R | CAT.6A U/FTP23AWG網路線 紅色 | 305M/箱 | ||
| 產品結構 | 電器特性 | |||
| 導體 | 材質/規格 | Bare Copper / 23 AWG | 最大導體電阻
(Conductor Resistance) |
Max. 9.38 Ω/100m at 20℃ |
| 芯線絕緣體 | 材質 | Foam-Skin PE(聚乙烯) | 電阻不平衡
(Resistance Unbalance) |
Max. 2% |
| 厚度 | Nominal: 0.42 mm | 電容不平衡
(Capacitance Unbalance) |
160pf / 100m (最大時) | |
| 外徑尺寸 | Nominal: 1.42 mm | 互耦電容
(Mutual Capacitance) |
5600pF / 100m (最大時) | |
| 芯線申長率 | Min. 100% | 阻抗
(Impedance ) |
1~100MHz 100Ω±15%
100~500MHz 100Ω±22% |
|
| 抗拉強度 | Min. 0.816 Kgf/mm² | |||
| 外被 | 材質 | PVC | ||
| 厚度 | Nominal: 0.5 mm | |||
| 外徑尺寸 | Nominal: 7.0mm | |||
| 外被申長率 | Min. 100% | |||
| 外被抗拉強度 | Min. 1.407 Kgf/mm² | |||
| 外被老化測試 | Min. elongation retention:50% | |||
| Min. tensile strength retention:75% | ||||
